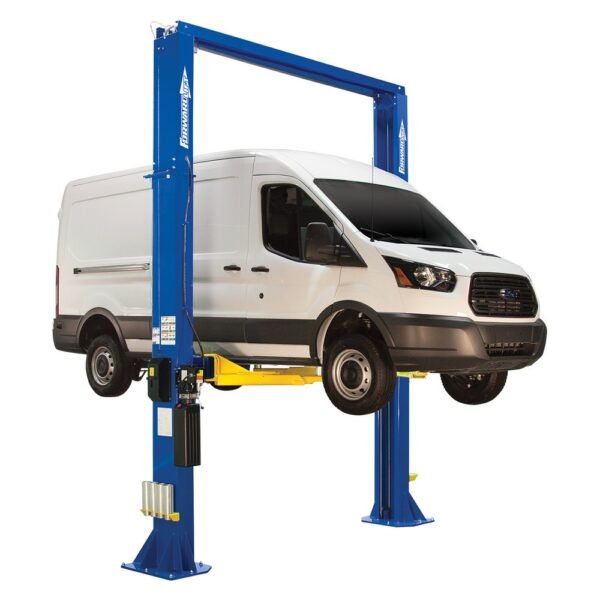

DP15 Heavy-Duty Two-Post Lift Features: The DP15 is constructed of high strength heavy gauge steel columns. Large gusseting on substantial base plate foundations provide the stability and support you want for a heavy truck lift. With a capacity of 15,000 pounds, your shop can start working on work trucks, vans, or small buses along with everything else that rolls through the door.

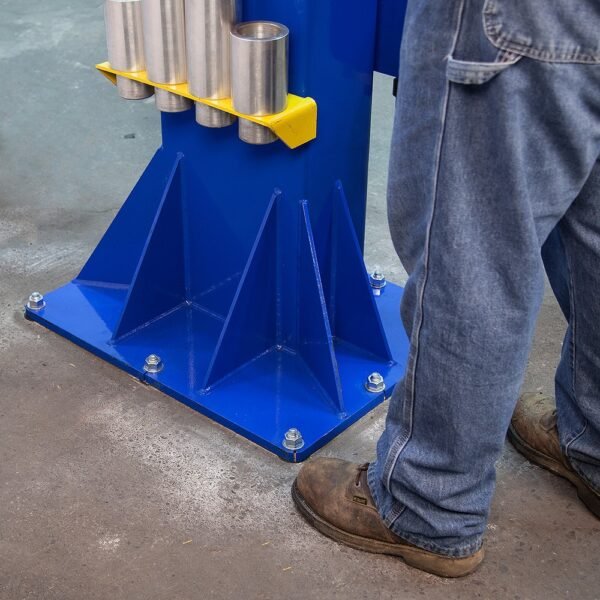

Truck Adapter Extensions: The DP15 comes with eight aircraft grade aluminum truck adapter extensions. Four 5” and four 10” adapters allow you to lift a wide range of vehicles. These are heavy-duty adapters without the “heavy”. Because they’re made of aluminum you’ll be able to place and maneuver them without strain. They have a convenient column bracket for storage.
Arms: Forward’s heavy-duty two-post DP15 has two-stage arms that can easily be extended and retracted while lying on the floor spotting a vehicle. Couple that with the light adapter extensions and you win the spotting large vehicle battle!
2-STAGE ARMS with heavy-duty reinforced gusseting • Extended and retracted from 61” to 38” • 5 1/2” minimum adapter height from floor
Extended Height Model Options: The DP15 offers three different height options, for the lowest ceiling option DP15N000 the overhead cross member mounts directly to the column without a column extension to fit a 155 ¾” (12’-11 ¾”) ceiling height. The standard height DP15N001 fits a 176” (14’-8”) ceiling height and the extended height DP15N002 fits a 200” (16’-8”) ceiling height. With all these options it’s easy to choose the best package to fit into your existing shop.
Additional Features:
15,000 lbs. capacity for raising most trucks and vans.
Features symmetrical column design
Direct-Pull Lifting – high efficiency, low maintenance technology
Closed-loop hydraulic system – protects against hydraulic contamination
Powder coat paint is more durable than conventional coatings
Third-party tested and certified by ALI
Padded shut-off bar
Low profile arms and truck adapters
Single point release lock at the operations center
Specifications
Specifications
DP15N000BL DP15N000RD
DP15N001BL DP15N001RD
DP15N002BL DP15N002RD
Column Extensions
No Extensions
Standard Height
Extended Height
Arm Type
2 Stage
2 Stage
2 Stage
Total Capacity
15,000 lbs. (8164kg)
15,000 lbs. (8164kg)
15,000 lbs. (8164kg)
Rise*
83-1/4” (2114mm)
83-1/4” (2114mm)
83-1/4” (2114mm)
Overall Height
154-3/4” (3930mm)
175″ (4445mm)
199” (5054mm)
Height to Shut-Off
147-1/4” (3735mm)
167-1/4″ (4250mm)
191-1/4” (4860mm)
Minimum Ceiling Height
155-3/4” (3956mm)
176″ (4470mm)
200” (5080mm)
Overall Floor Width
154-3/8” (3921mm)
154-3/8” (3921mm)
154-3/8” (3921mm)
Inside Column Width
119-5/8” (3038mm)
119-5/8” (3038mm)
119-5/8” (3038mm)
Drive Through
108-1/4” (2749mm)
108-1/4″ (2750mm)
108-1/4″ (2750mm)
Arm Reach
38” (965mm) 61” (1549mm)
38” (965mm) 61” (1549mm)
38” (965mm) 61” (1549mm)
Minimum Adapter Height
5-1/2” (139mm)
5-1/2” (139mm)
5-1/2” (139mm)
Stackable Adapter Height (Low Extension)
10-1/2” (266mm)
10-1/2″ (266mm)
10-1/2″ (266mm)
Stackable Adapter Height (High Extension)
15-1/2” (393mm)
15-1/2″ (393mm)
15-1/2″ (393mm)
Voltage*
208/230v, 20 amps
208/230v, 20 amps
208/230v, 20 amps
Amps
20
20
20
Motor
2 HP/1Ø
2 HP/1Ø
2 HP/1Ø
* Specifications subject to change without notice or liability. *Maximum lifting height with 10” adapters * 1Ø, 3Ø, and 3Ø 600V available via special order – restrictions apply
